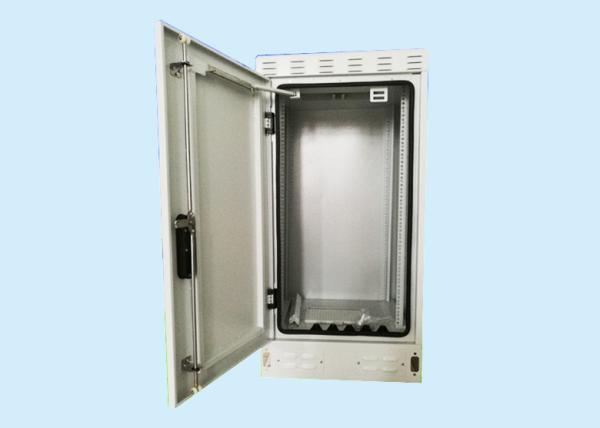

Outdoor Ark Fibre Broadband Cabinet Of Lithium Iron Batteries
Application fields:communication,radio and television,electricity
and others
Feature:
High reliability,maintenance free,quickly assembled,applicable to
the wild environment.
High integration,less ground demand,short construction
periods,reduce the construction cost effectively.
Support quickly assembled and outfit,applicable to the top of the
mountain and the scene to install,easy to move
19inch standard support frame,fan haet sink.
Outdoor ark of lithium iron batteries cabinets adopt metal frame
structure,the overall material is made of 1.5mm galvanized steel
a) Cabinets have no artifacts which can remove from outside
directly and influence the safety.
b) Use galvanized steel ,galvanized steel plate thickness is 1.5mm.
c) Battery cabinets support standard 19inch rack .
d) The battery cabinets configure 4 pieces of “L” adjustable
supporting article,support load -carrying capacity of≥300kg
e)At the top of battery cabinets configure the cooling fans ,with
temperature switch control.
f)Battery cabinets have considered anti -theft design fully ,
install the anti -theft article file at the battery installation
location ;
g)The battery cabinet base height is 150-200mm,the base panel with
thickness of 2.0mm galvanized steel,surrounded by flapper to
prevent animal.
Technical parameters:
System configuration
| Item | Technical indicator |
| Model | KL-ODC-126060-ABHM |
| Internal dimensions(WxDxH) | Internal dimension:950*560*560mm；External dimension:1200*600*600mm |
| Type | Single tank |
| Cabin constitution | 1 cabin |
| Maintenance method | With one front door |
| Assembling method | Assemble/equipped |
| Frame size | 19 inch rack+“L”supporting article /layers |
| Protection grade | IP55 |
| Operating temperature | -40℃～+55℃ |
