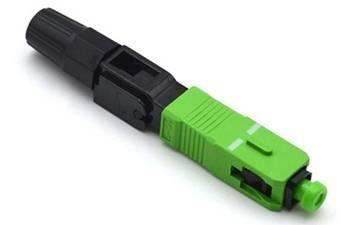

Multimode / Single Mode Fiber Connectors SC / APC SC / UPC

Product Categories

Shenzhen Damu Technology Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	KELONG
Model Number :	FIC-SC
Certification :	TLC
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	20K/DAY
Delivery Time :	7 WORK DAYS

Add to Cart

1.1 Measured the Structure

1.2 Product length

50mm ≤L≤60mm

2.Optical Characteristics

Category	Specification		Remarks
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40～+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3

3.Environmental performance requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
High TEMP	110℃,200H	≤0.5	≤5	No mechanical damage, like deformation, cracking and untight
Low TEMP	-40℃,200H	≤0.5	≤5
TEMP Cycling	-40～85℃,3.5H/Cle,100C	≤0.5	≤5
HAST	110℃,90%RH,200H	≤0.5	≤5
Immersion	25℃,200H	≤0.5	≤5
Salt Mist	5% Nacl,6.5＜PH＜7.5,35℃,200H	≤0.5	≤5

4.Mechanical Performance Requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
Impact	Height: 4m； 1 drop each axis； 3 cycles	≤0.5	≤5	No mechanical damage, like deformation, cracking and untight
Vibration	Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm； Duration:30min each axial	≤0.5	≤5
Torsional	Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min. Times: 200	≤0.5	≤5
Tensile	Pull:50N；The distance between Loading location and fast connector: L = 22-28cm； Duration:1min.	≤0.5	≤5
