PVC cable Warning Post is also named as plastic steel warning
post,manufactured by pvc materials and many other accessories. This
materials has high performance that is stiffness, elasticity,
anti-corrosion, ageing resistance. Therefore, our product is not
only anti-abrasive, thermo stability, anti-corrosion, but also
deft, easy installation.
The main body of PVC Warning Post is white, covered with a red hat
that is made of ABS material. The words on the surface is red, it
is printed by imported ink that is not fading and cost-effective
PVC
2.Product feature:
Bright appearance,it will be easy to attract attention.
Polytropic Type,can be used in different environment.
Good materials, convenient for transporting and installation,it has
a long lifetime
It is good at prevention of burglary.
Range of application:
Project Type:
Underground Communication: Electric Cable,optical cable,optical
fiber,reticle and so on.
Underground Pipeline: Oil pipe, gas pipe, water pipe, electrical
pipe.
Ground Greening Warning:scenic zone, green lawn, traffic signals,
bushes, highway, railway, shipping,air and so on.
Applicable organization:Telecommunication company, petroleum and
petrochemical company, natural gas company, electric company,
municipal pipelines, Bureau of parks and woods, and department of
transportation.
Technology Index
Specification: 120mm*120mm*1000mm, thickness 3mm±0.3mm. Unit net
weight: 2.4 kg /pc.
Lifetime:25 years
Working environment:-20℃～+65℃, relative humidity: ≤95%(+30℃),
atmospheric pressure:70～106kPa
Flame retardation:conform to GB/T2408 FV-0 level.

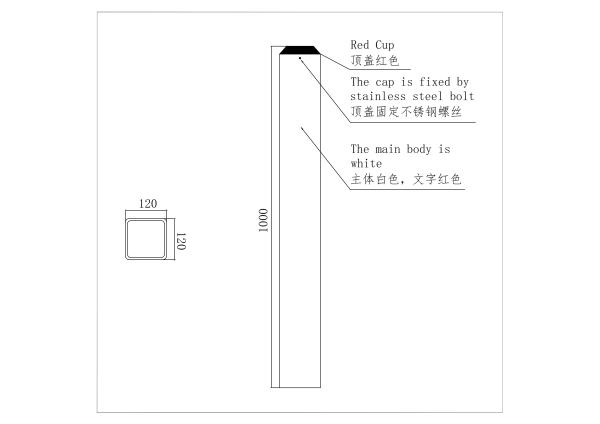

The main structure of the product:
Warning Post Installation Method
Installed above the buried cable with an interval about every 50~80
meter, or installed at Cable junction, bend, or the entering of the
building,or when engineer installs the cable.
Post-Maintance
The traditional cement warning post has a long production
cycle,heavy that not good for transportation,difficult for
installation. The PVC warning post is easy for
product,transportation and installation.
