Pre-connectorized Optical Fiber Distribution Box GFS-16QX IP68 378255136mm 16 pre-connected adapter aerial-mount

1.1 Description

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

Production type	Classification
GFS-16QX	Optical fiber cable distribution box

2. Characteristics

2.1. Advanced structure design, easy operation and reasonable routing.

2.2. Material: PP or PC+ABS.

2.3. Moisture proof, waterproof, dust-proof, anti-aging.

2.4. Protection level up to IP68.

2.5. 1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters.

2.6. 2 type splice trays optional.

2.7. Installation method: pole-mounted, aerial-mounted, wall-mounted.

3.1 Mechanical specifications

Item	Specifications	Remark
External dimension(mm)	378255136(ABC)
Installation hole position(mm)	215266239(DEF)
Color	Black	Customizable
Size and quantity of optical cable hole	1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters
Capacity(Max)	4 type A(48 cores) or 8 type B (64 cores) or 8 type C(96 cores) melt fiber discs	It can be combined or selected
Into the largest cable diameter (mm)	ᴓ15
Maximum size of bifurcation hole (mm)	ᴓ12
IP protection level	IP68
Flammability	HB(Conventional)	can be customized according to requirements
Neutral salt spray test (NSS)	48 h	can be customized according to requirements

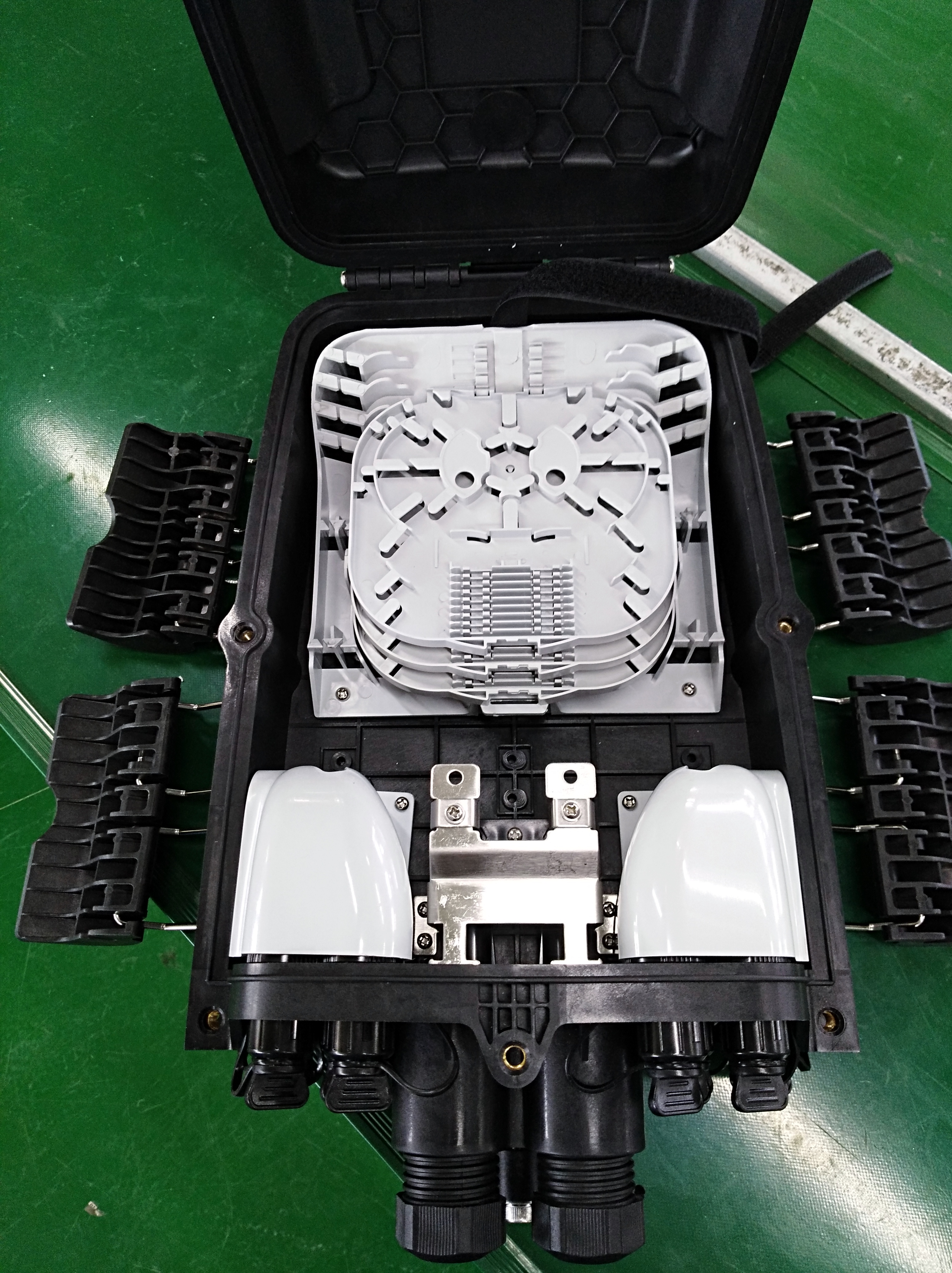

Pre-connectorized Optical Fiber Distribution Box GFS-16QX IP68 378*255*136mm 16 pre-connected adapter aerial-mount

Pre-connectorized Optical Fiber Distribution Box GFS-16QX IP68 378255136mm 16 pre-connected adapter aerial-mount
