FTTH Drop Cable Cutting Machine

1.Purpose:

DM-FDC high-speed heavy-duty FTTH drop cable cutting machine is suitable for looping, meter counting and binding of the ftth drop cable, butterfly cable, 12 core cable, etc. The equipment has the advantages of high production efficiency, good cable arrangement quality, no pressing, orderly arrangement and convenient cable removal, which completely solves the problems of low production efficiency and poor cable arrangement quality of the previous optical cable industry.

2. Characteristics:

1. It is quick and convenient to load and unload the reel. The cantilever type combined guide wheel is used for cable storage, and the linkage brake mechanism is used for paying off without disorderly line.

2. Smooth rod type guide wheel and tension type automatic cable arrangement are adopted for cable arrangement. The cable arrangement is neat and beautiful. Mature operators can arrange one reelcable in 30-40 seconds.

3. After the optical cable is in a circle, the self expanding cable take-up shaft can be used, the inner diameter can be freely tightened, can be quickly tied and easily removed, with high efficiency and short time.

4.Right side put in cable and left side put out the cable.

5. Spindle motor speed 1650.

3, Technical performance

1. Outer diameter of reel φ 380mm (adjustable)

2. Inner core of reel φ 120mm (inner diameter of reel can be selected by customers)

3. Reel width: 40-120mm (adjustable)

4. Cable cutting type: ftth drop cable, butterfly cable, self-supporting drop cable, 12 core cable

5. Winding shaft speed 0-600r / min

6. Motor power: 2.2kw

7. Speed control 2.2kW frequency converter

8. High precision length counter(meter length adjustable) can correct meter error by itself.

9. cutting length:Lam≤990M

10. cable size:ø 5.0- ø 10.0mm,

11. cable send speed:≤2m/s(adjustable)

12. length precision:Lam≤±2‰

13. power:2.2KW 220V　50/60Hz

14. cale loaded weight:Lam≤100KG

15. machine size:L*W*H≈5m*1.8m*1.5m Packed size:5.0CBM

16. weight:≈400KG(with wood packing)

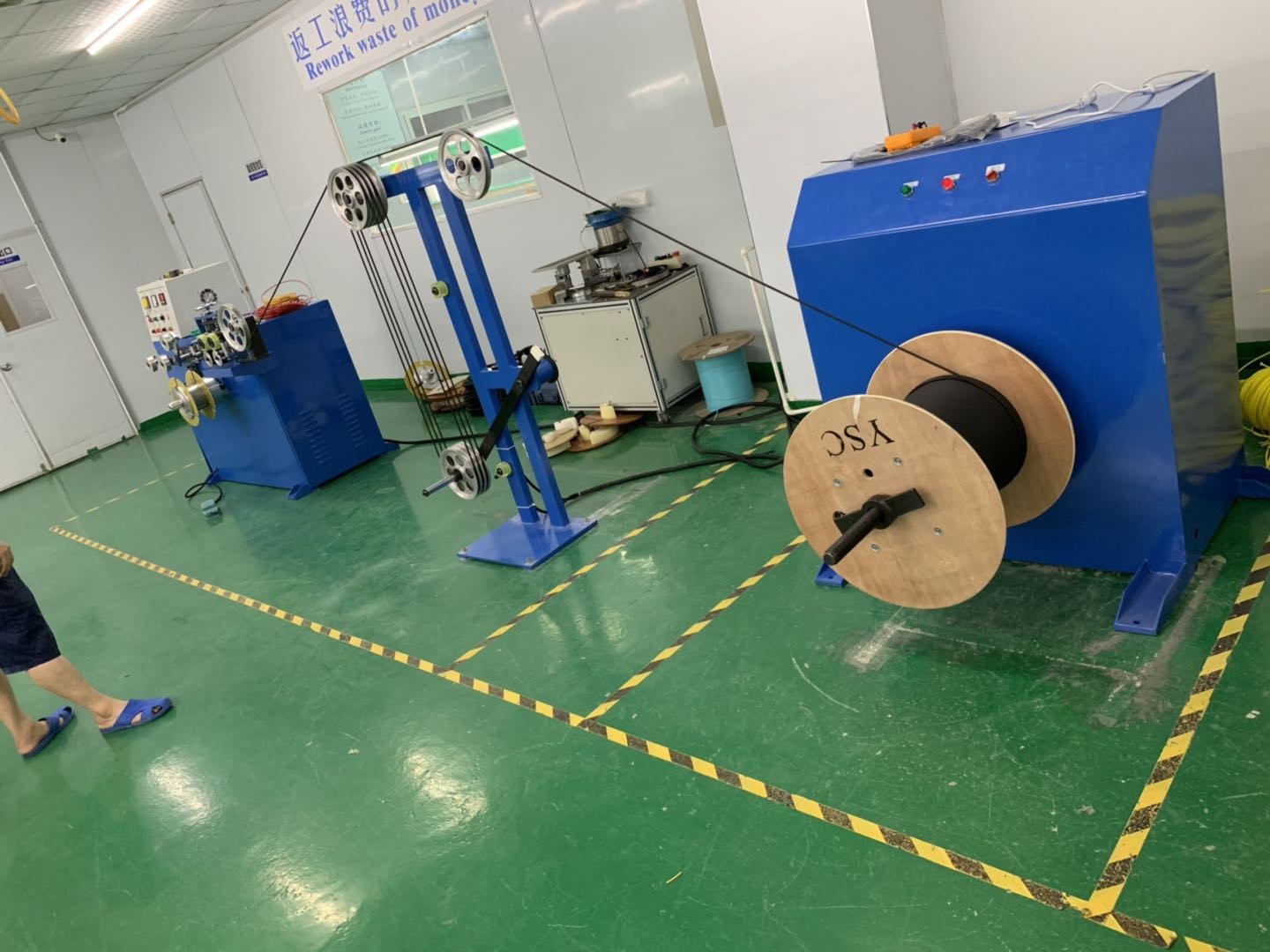

4, Device configuration:

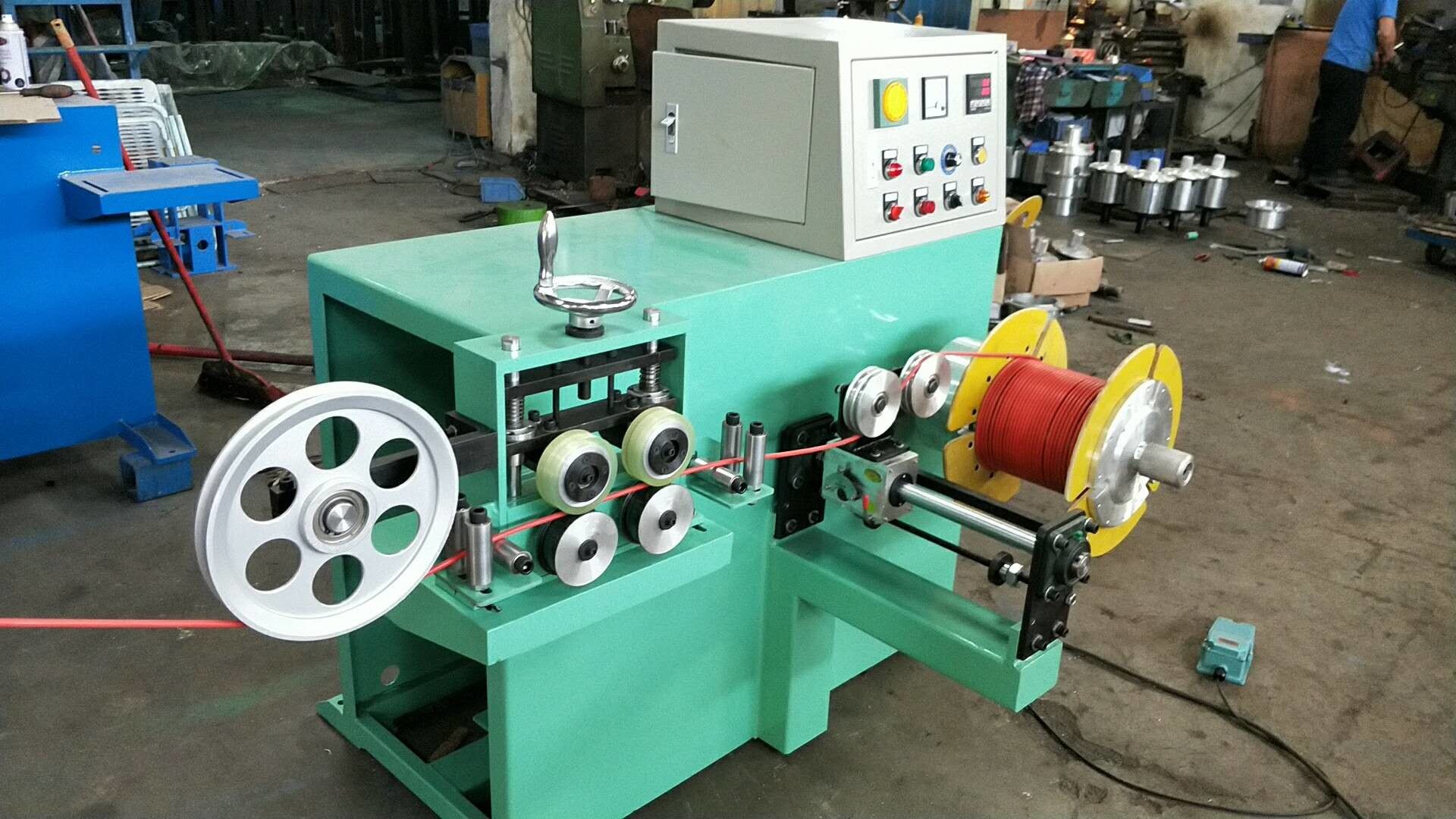

1. One cable cutting and winding host

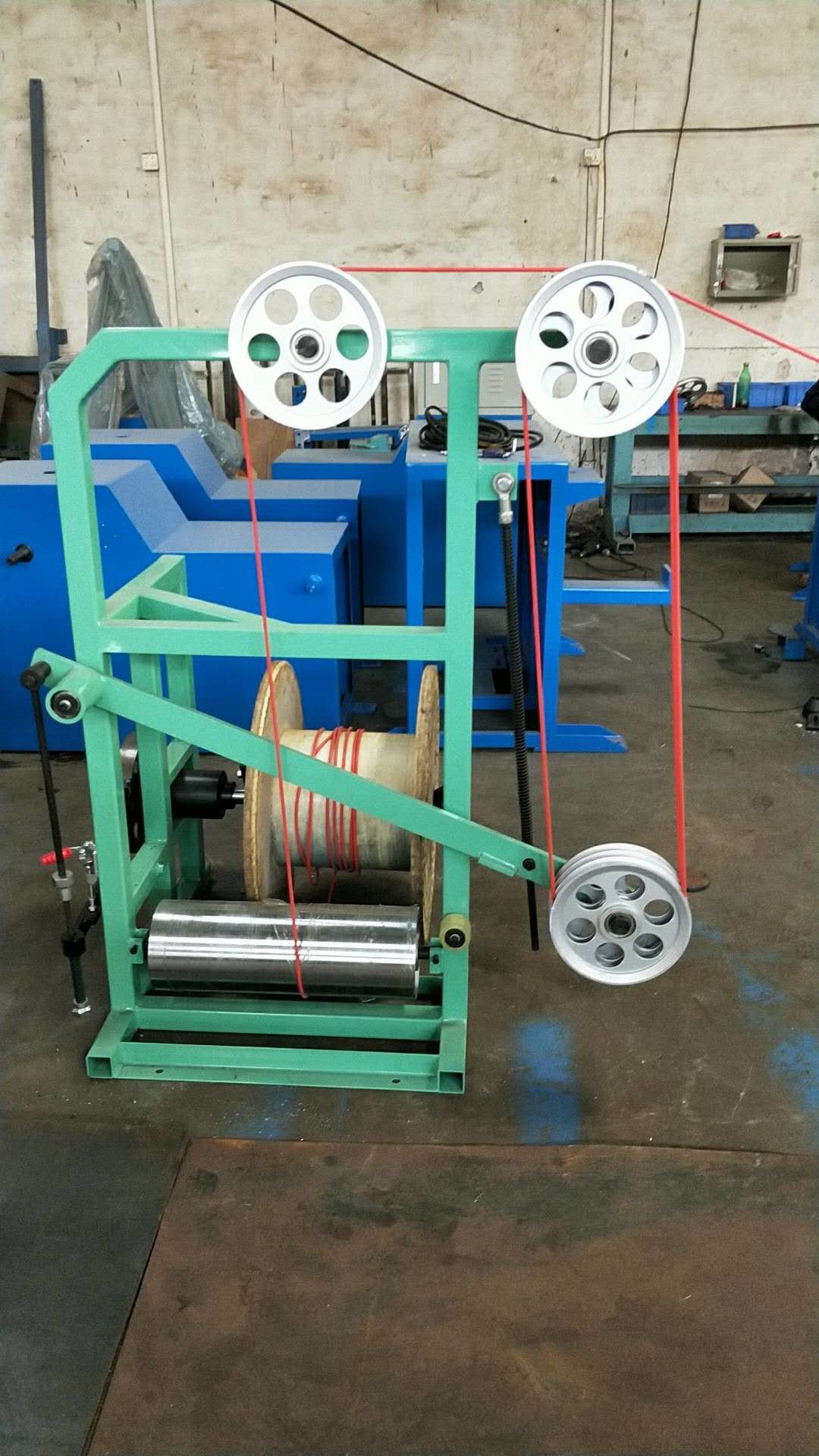

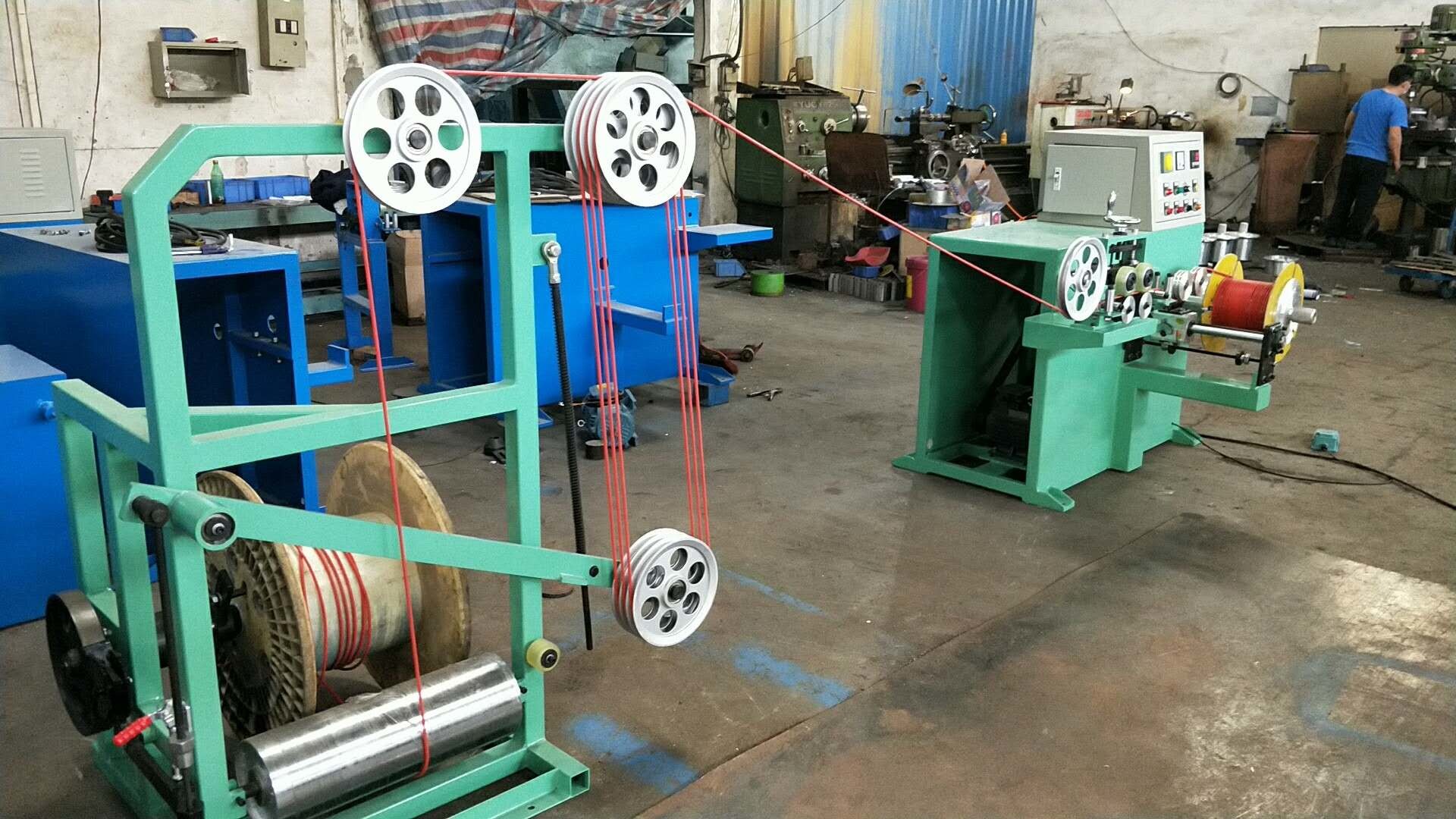

2. Lever type automatic tension paying off frame (cable diameter 700mm)

Packing size:

One cable cutting and winding host

The aperture of the inner ring of the optical cable can be selected as 80mm/100mm/120mm/140mm/160mm/200mm/300mm or customized .
